For new designs, we recommend the IOL HAT Pro PT-1203. If you want to purchase the PT-1201 for legacy implementations, please contact us for availability: info@pinetek-networks.com

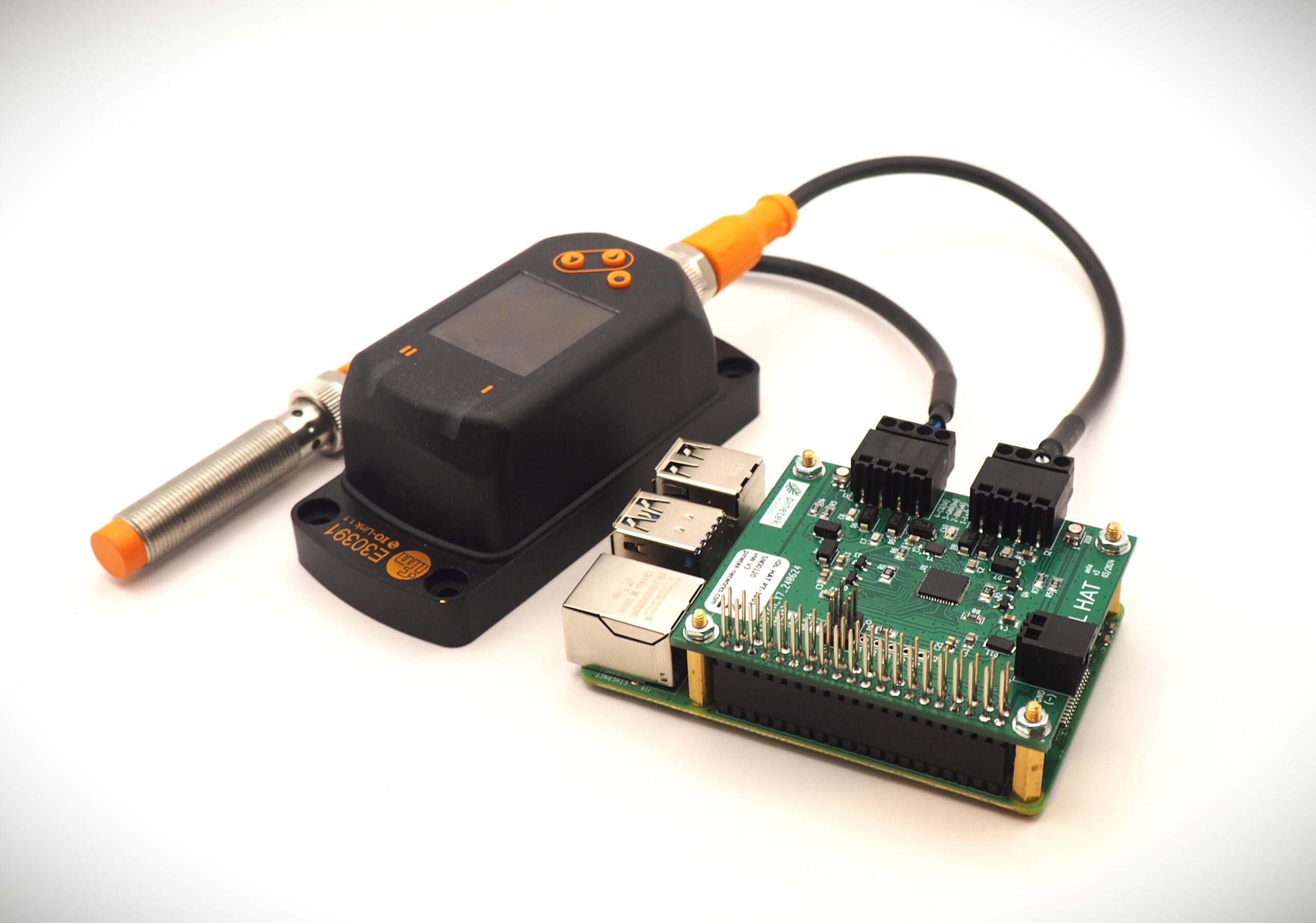

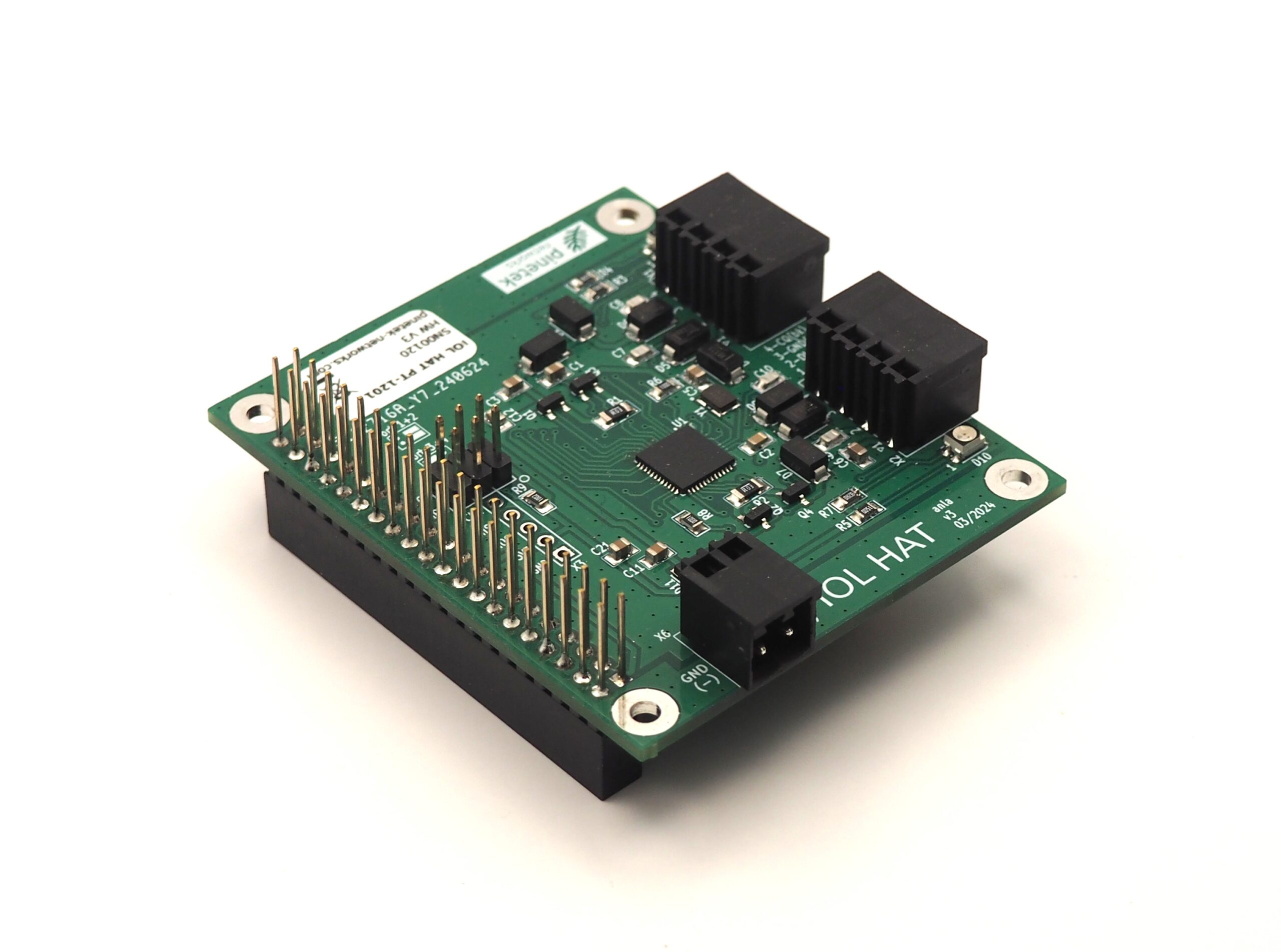

IOL HAT Extension module for Raspberry Pi for connection of IO-Link® devices.
- two IO-Link compatible master ports for connection of smart sensors and other devices
- extension for Raspberry Pi2 using a 40-pin GPIO connector (generic interface for other single-board-computers also available)

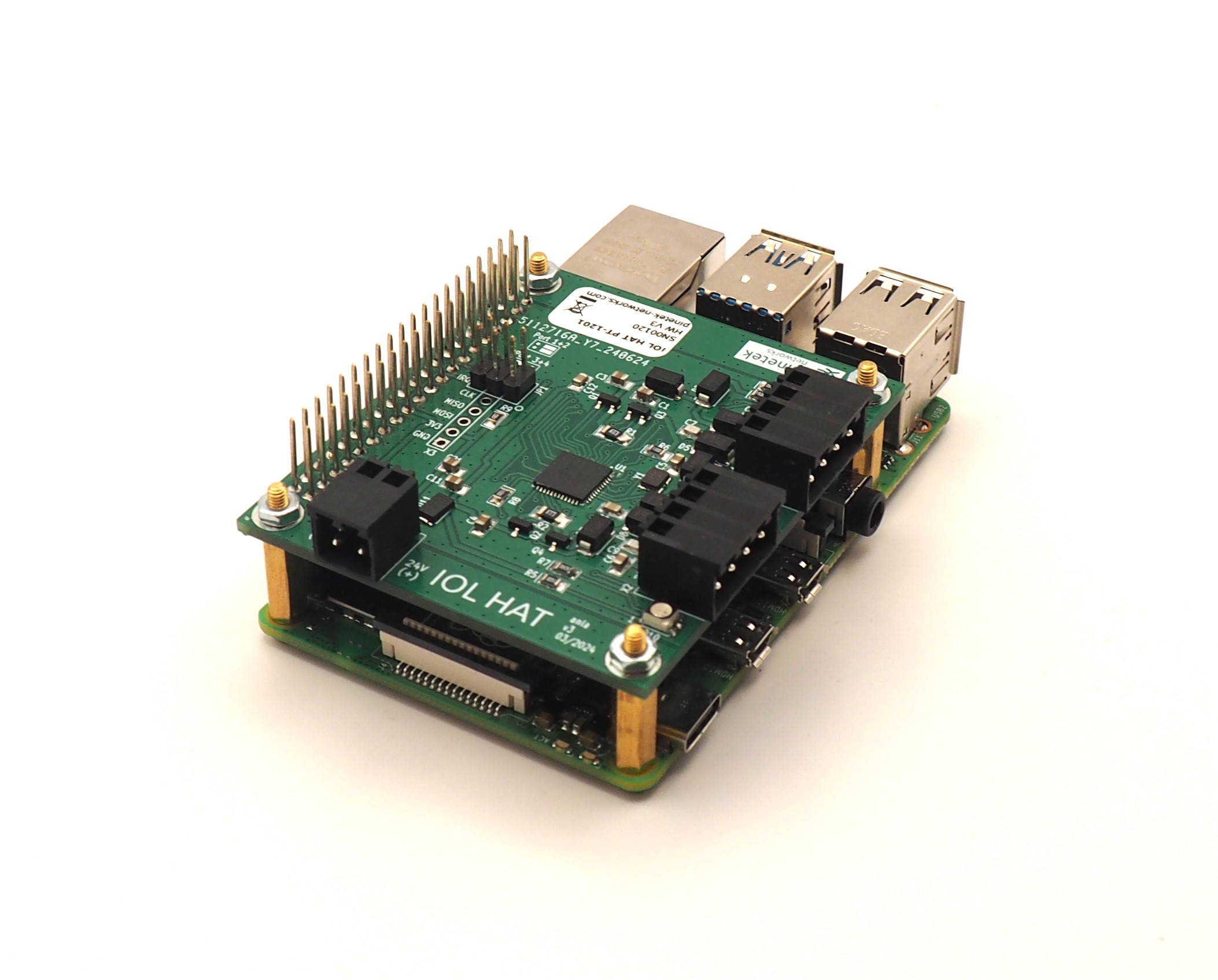

- stacking option for 2 IOL HAT modules on one Raspberry Pi (up to 4 ports in total)
Scope of delivery:
- IOL HAT with 40-pin GPIO connector
- 2x 4-pin connectors for 2xSDCI port (3,5mm)
- 4x spacers with nuts
- 1x 2-pin connector for 24Volt connection (3,5mm)
