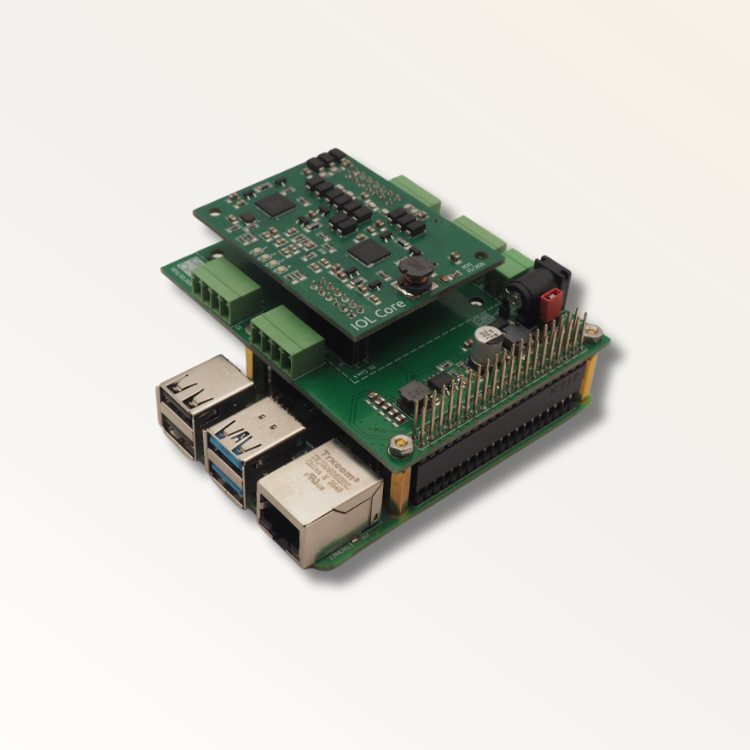

IOL Core 4 Evaluation Kit for Raspberry Pi
IOL Core4
- 4 IO-Link compatible master ports for connection of smart sensors and other devices
- Standard version (no microcontroller)
IOL Core Carrier Board
- Powering option for Raspberry Pi up to 1800mA (equals 50% CPU load on RPi5 + 2x full load on USB2.0)
- 2 power connection options (screw plug 2,5mm and round connector)
- Advanced power filtering for harsh environments
- connection to Raspberry Pi over 40-pin GPIO connector
Scope of delivery:
- IOL Core4 (PT-1204)
- IOL Core4 Carrier Board
- 4x 4-pin connectors for 2xSDCI port (3,5mm)
- 4x spacers with nuts
- 1x 2-pin connector for 24Volt connection (3,5mm)
- 2x M12 Cable with open ends (PT-1302)
