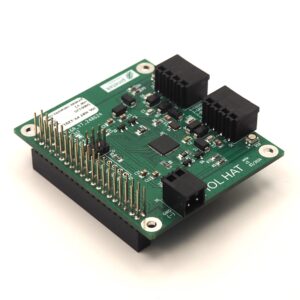

IOL HAT Extension module for Raspberry Pi for connection of IO-Link® devices.

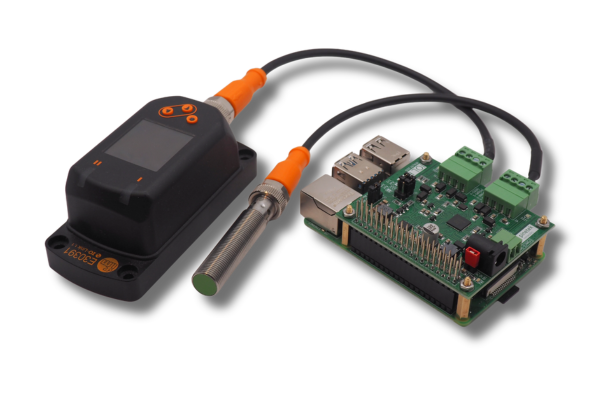

- two IO-Link compatible master ports for connection of smart sensors and other devices
- Powering option for Raspberry Pi up to 1800mA (equals 50% CPU load on RPi5 + 2x full load on USB2.0)
- 2 power connection options (screw plug 2,5mm and round connector)
- Advanced power filtering for harsh environments

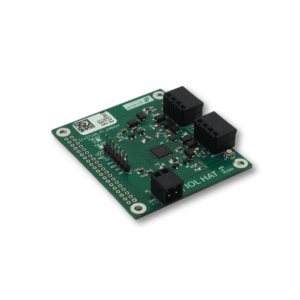

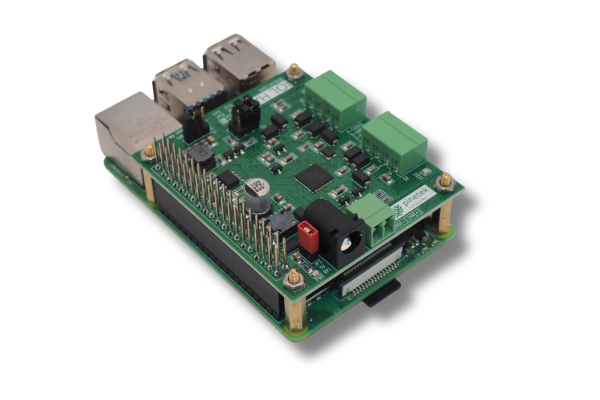

- extension for Raspberry Pi2 using a 40-pin GPIO connector (generic interface for other single-board-computers also available)
- stacking option for 2 IOL HAT modules on one Raspberry Pi (up to 4 ports in total)
Scope of delivery:
- IOL HAT with 40-pin GPIO connector
- 2x 4-pin connectors for 2xSDCI port (3,5mm)
- 4x spacers with nuts
- 1x 2-pin connector for 24Volt connection (3,5mm)
